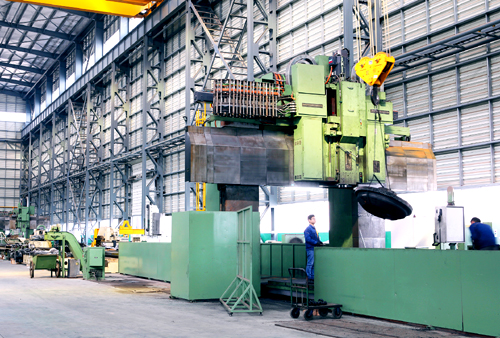

Double Column Bridge Type CNC Vertical Machining Center

Make廠家：德國Waldrich Seigen

Travels行程:
X Axis Travel工作臺行程：X 9500mm
Y Axis Travel刀具行程：Y 3600mm
Z1 Axis Travel (Ram)方滑枕伸出：Z1 - 955mm
Z2 Axis Travel (Spindle) 套筒伸出：Z2 - 560mm
W Axis Travel (Rail Elevation) 橫梁行程：W 1500mm
Height from Table Top to Crossrail 橫梁下高度:
Rail up – Ram retracted 橫梁上：2209mm
Rail down – Ram retracted 橫梁下：1016mm
Table Size(s)工作臺尺寸：2個4000長×3000寬mm或者一個9000長×3000寬 mm

Spindle Motor電機功率：40HP
Spindle Speeds主軸轉速：10 – 1，800 RPM
Spindle Taper刀柄：CAT #50

附件：數控萬能銑頭，直角銑頭，加長銑頭。

系統帶有雷尼紹加工精度檢測

Load 載重：160T
accuracy 精度：0.03mm/8m
